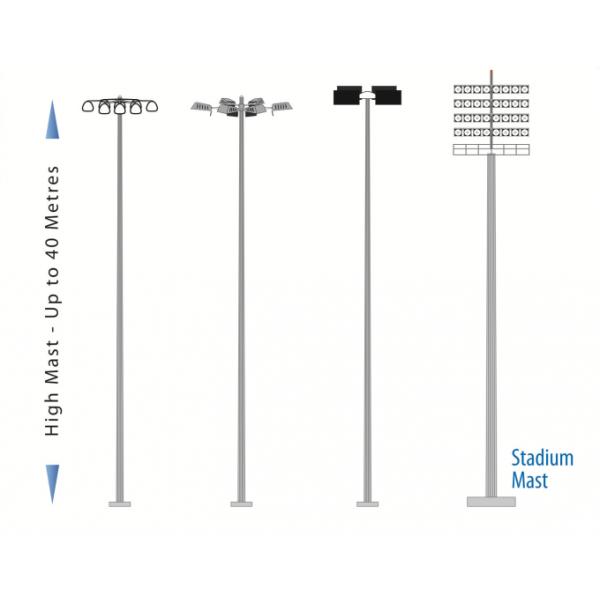

25m polygonal high mast light pole for seaport. High mast pole are engineered for applications where reliability and ease of service are primary considerations. High mast lighting systems are excellent for illuminating large outdoor areas such as:
- Highways
- Interchanges
- Prison Yards
- Railway Yards
- Ports
- Airports
- Parking Lots
- Industrial Plants
- Freight Yards and many more applications
Our high mast pole is proud to offer high quality top latching and bottom latching (non-latching) lifting mechanisms. The polygonal poles are designed for specific applications and are shipped in sections with slip-fitting connections for ease of handling and installation.
With deep engineering know-how, Milky Way is well qualified to account for the lighting load, tower weight, variable wind speeds, local soil conditions and a host of other relevant variables which less experienced suppliers may not consider in their designs.
Milky Way high masts meet CE requirements and a variety of designs and mounting accessories are
available, including platforms, climbing ladders and retractable lighting systems.
Hot-dip galvanizing treatment is available to protect the steel from corrosion. A wide selection of colors are available as well to add an attractive and protective exterior coating utilizing wet paint or power coating technology.
Lifting System
Our lifting system is the most advanced in China, it included the lighting rod,totally-closed pulley shelf,unhooked hook,unhooking indicator flag,installation ring of lamp panel,lamp,lamp panel,steering system,load binder of steel wire ropes,rope&cable system,lamp post,lighting control device, windlass,motor,ascending/descending control cabinet and teleswitch.
- Max Lighting power: 18kw
- Pole height: 15-50w
- Safety working load: 200-1000kg
- Brake distance: <=2m (note: need fix braking system)
- Average raising rate: 3.6m/m
- Motor power: 370w-2.1kw
- Max. Safety working wind speed 10m/s
- Wire rope safety factor: 8 times of safety working load
Date sheet for lowering device
| Type | SAFE WORKING LOAD(KG) | FOR POLE HEIGHT(METERS) | DOOR SIZE(mm) | TOP DIA(mm) | BOTTOM DIA(mm) | MOTOR POWER |
| FJ-20A | 200 | ≤25 | 260*900 | 150-190 | 360-450 | 0.55kw |
| FJ-30A | 300 | ≤30 | 280*1000 | 150-190 | 380-450 | 0.74kw |
| FJ-40A | 400 | ≤30 | 320*1100 | 150-300 | 480-1070 | 1.1kw |
| FJ-60A/B | 600 | ≤50 | 350*1100 | 220-300 | 570-1070 | 1.1kw |
| FJ-80A/B | 800 | ≤50 | 420*1100 | 220-300 | 620-1070 | 1.5kw |
| FJ-100A/B | 1000 | ≤50 | 460*1100 | 220-300 | 650-1070 | 2.2kw |
Company Profile
Jiangsu Milky Way Steel Poles Co.,Ltd. was established in 1991, given our track record of over 20 years in the industry, we offer an established commitment to providing impeccable service and quality products.
